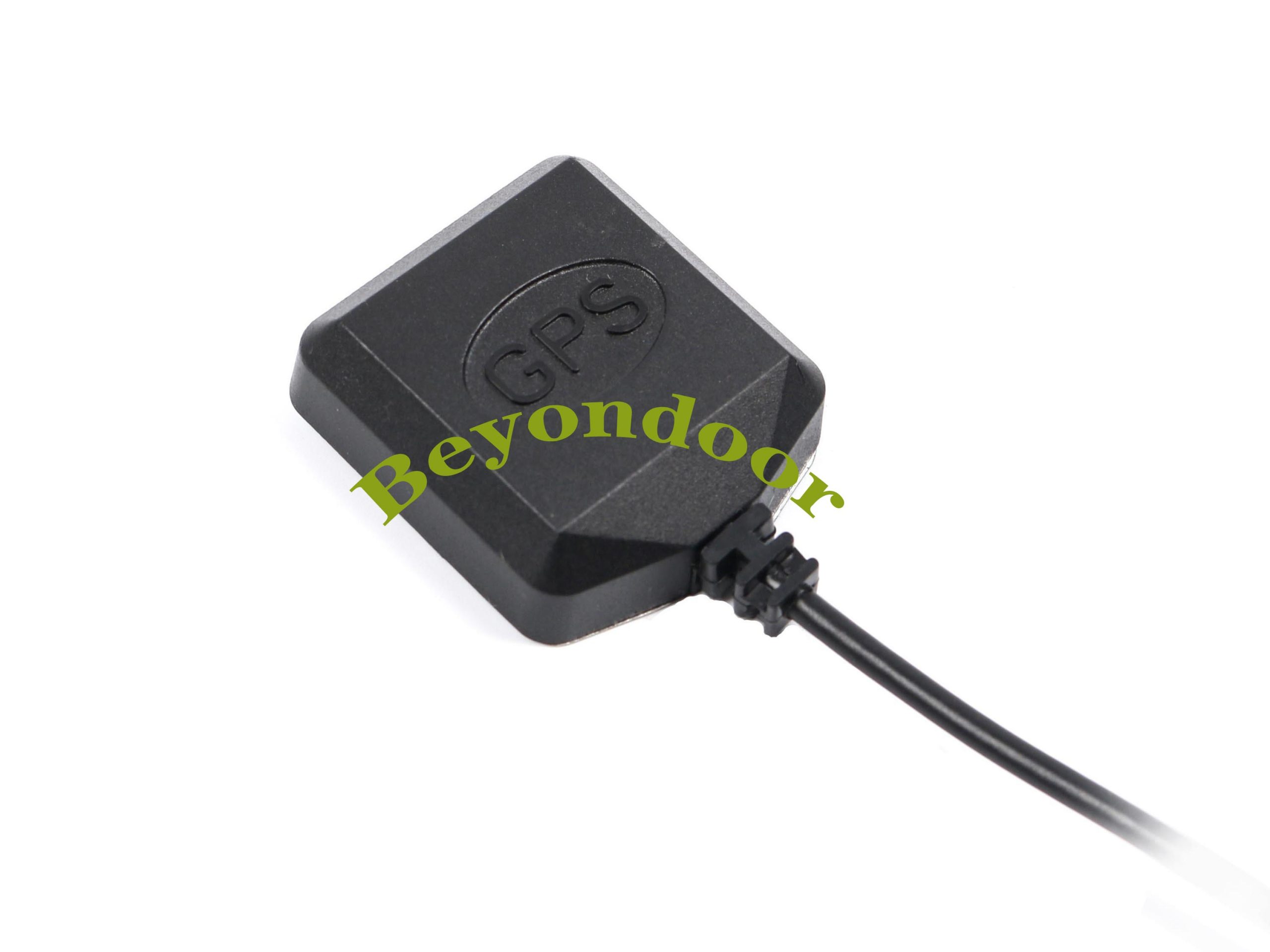

P/N:BY-GPS-07,GPS External Antenna,GPS active two stage LNA high quality antenna magnetic mount,

Model: BY-GPS-07

i)Dielectric Antenna

Center Frequency(MHz):1575.42±3

VSWR:1.5:1

Bandwidth(MHz):±5

Impedance (Ω):50

Peak Gain >3dBi  Based on 7cm×7cm ground plane

Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)

Polarization:RHCP

(ii)LNA/Filter

LNA Gain (Without cable) :28 dBi Typical

Noise Figure(dB):1.5

Filter Out Band Attenuation (f0=1575.42 MHz)

7dB Min f0+/-20MHz ;

20dB Min f0+/-50MHz;

30dB Min f0+/-100MHz

VSWR <2.0

DC Voltage(V):2.7/3.0/3.3/3.0 to 5.0 etc.

DC Current(mA):10  Max

 (iii)Mechanical

Weight(gram)<100

Size(mm):37.2×34×11

Cable Length (m):2,3 etc.

Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.

Mounting:Magnetic base

Housing:Black

(iv)Environmental

Working Temp:-40℃~+85℃

Storage Temp:-45℃~+100℃

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity:Humidity95%~100%RH

Weatherproof:100%Waterproof
