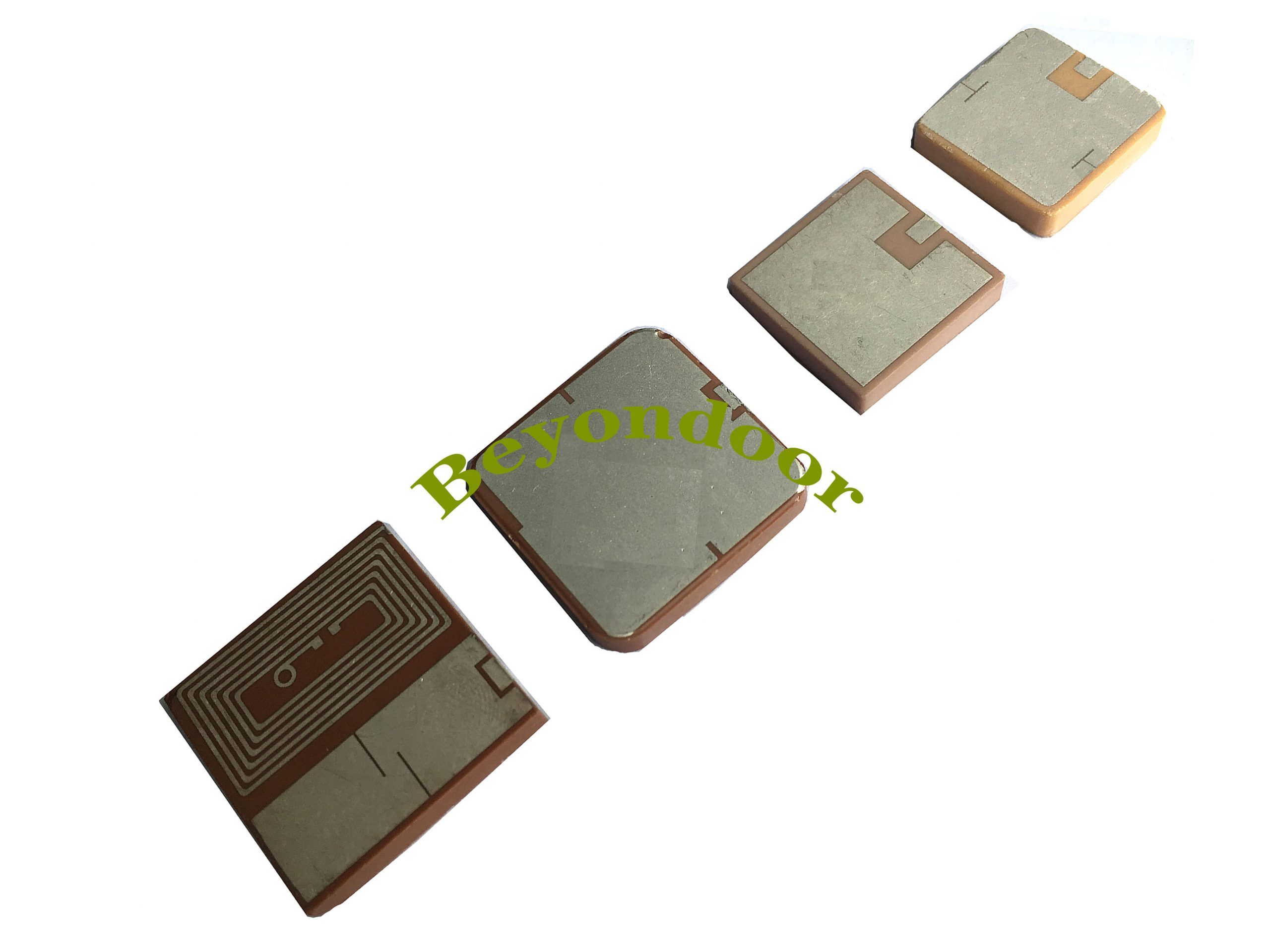

P/N:BY-RFID,868Mhz,915MHz RFID Antenna, all kinds of size RFID 915mhz dielectric antenna

MOEDL:BY-RFID

iDielectric Antenna
Center Frequency(MHz):868MHZ(or 915MHZ,922.5MHZ customed)
VSWR:1.5:1
Bandwidth(MHz):15 Min
Impedance(Ω):50
Gain:1.5dBi
Polarization :RHCP
Power Handling(W):1
iiMechanical
Weight(gram)<8
Size(mm):18X18X4

iiiEnvironmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+90℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH

-------------------------------------------------------------

MOEDL:FARFID.194

iDielectric Antenna
Center Frequency(MHz):868MHZ(or 915MHZ,922.5MHZ customed)
VSWR:1.5:1
Bandwidth(MHz):15 Min
Impedance(Ω):50
Gain:1.5dBi
Polarization :RHCP
Power Handling(W):1
iiMechanical
Weight(gram)<8
Size(mm):19X19X4

iiiEnvironmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+90℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH

----------------------------------------------------------------

MOEDL:FARFID.254

iDielectric Antenna
Center Frequency(MHz):868MHZ(or 915MHZ,922.5MHZ customed)
VSWR:1.5:1
Bandwidth(MHz):15 Min
Impedance(Ω):50
Gain:2dBi
Polarization :RHCP
Power Handling(W):1
iiMechanical
Weight(gram)<10
Size(mm):25X25X4

iiiEnvironmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+90℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH

---------------------------------------------------------------------

MOEDL:FARFID.2542F

iDielectric Antenna
Center Frequency(MHz):868MHZ(or 915MHZ,922.5MHZ customed and 13.56mhz))
VSWR:1.5:1
Bandwidth(MHz):15 Min
Impedance(Ω):50
Gain:2dBi
Polarization :RHCP
Power Handling(W):1
iiMechanical
Weight(gram)<10
Size(mm):25X25X4

iiiEnvironmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+90℃
Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
