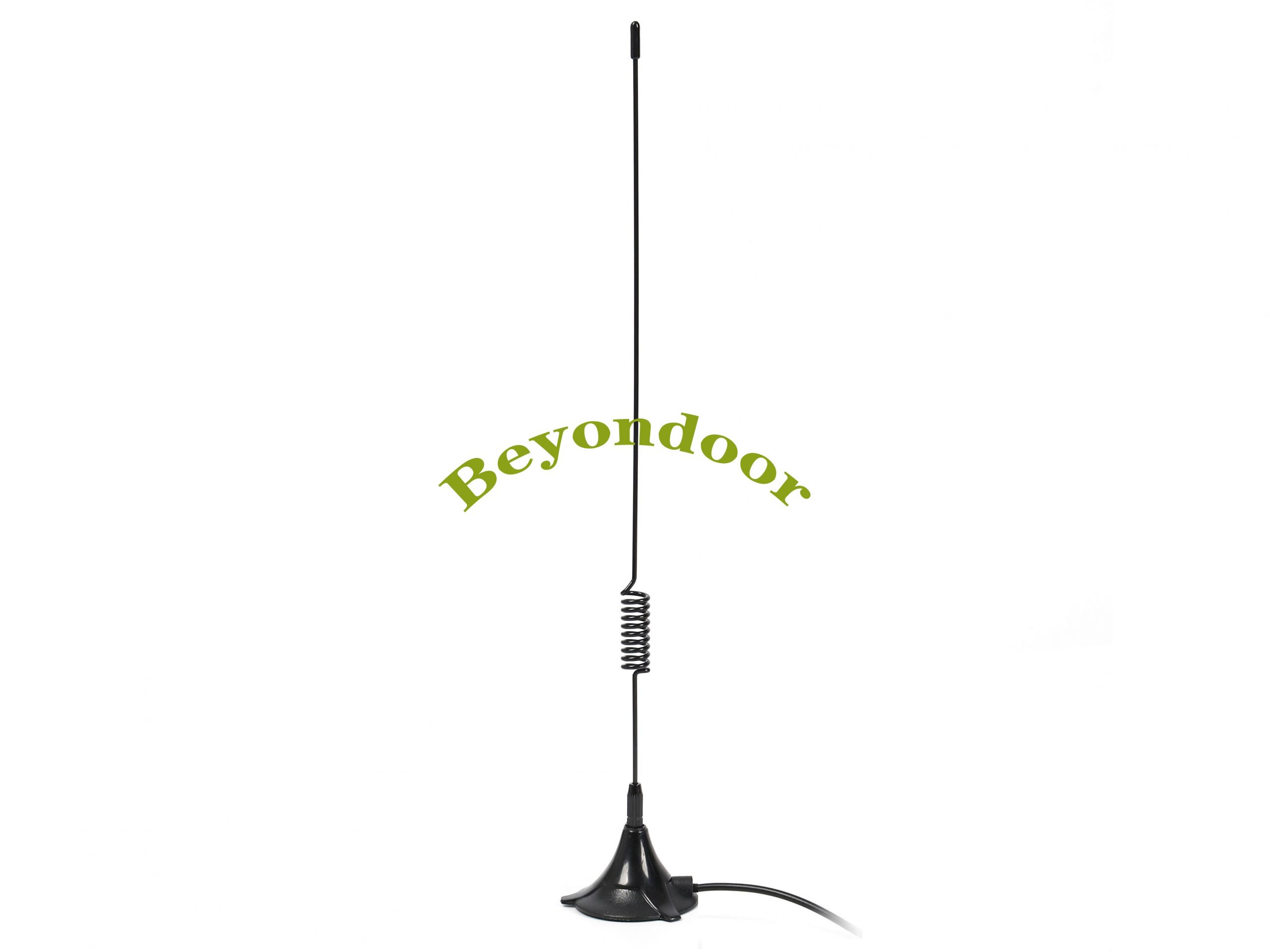

P/N:BY-GSM-HH,GSM External Antenna,Outdoor Aerial with RG174 cable mount magnetic 5dbi gain

Model: BY-GSM-HH

Frequency(MHz):850-1900/900-1800
Bandwidth(MHz):90/280
VSWR ≤1.5
Gain(dBi):5
Max Input power(W):50
Input Impedance(Ω):50
Polarization :Vertical
Radiation :Omni
Size(mm):Φ39.5(Base)×280(Height)
Cable Length(m):2,3,5 etc.
Cable Type:RG174
Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting :Magnetic
Housing:Black
Storage Temperature:-45℃ to+75℃
Operating Temperature:-45℃ to+75℃
