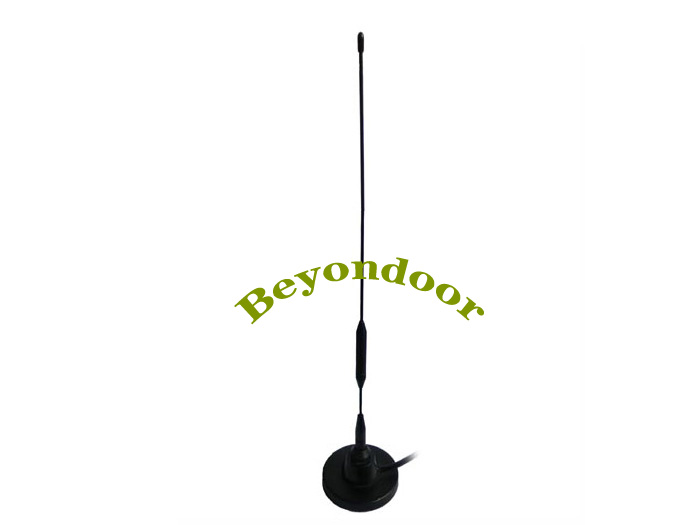

P/N:BY-GSM-20-05,GSM External Antenna,Strong magnetic base  mount  BNC connector

Model: BY-GSM-20-05

Frequency(MHz):850-1900/900-1800
Bandwidth(MHz):90/280
VSWR ≤1.5
Gain(dBi):5
Max Input power(W):60
Input Impedance(Ω):50
Polarization :Vertical
Antenna Length(mm):375
Size(mm):Φ70(Base)×375(Height)
Cable Length(m):2,3,5
Cable Type:RG174
Connector:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting :Magnetic
Housing:Black
Storage Temperature:-45℃ to+75℃
Operating Temperature :-45℃ to+75℃
