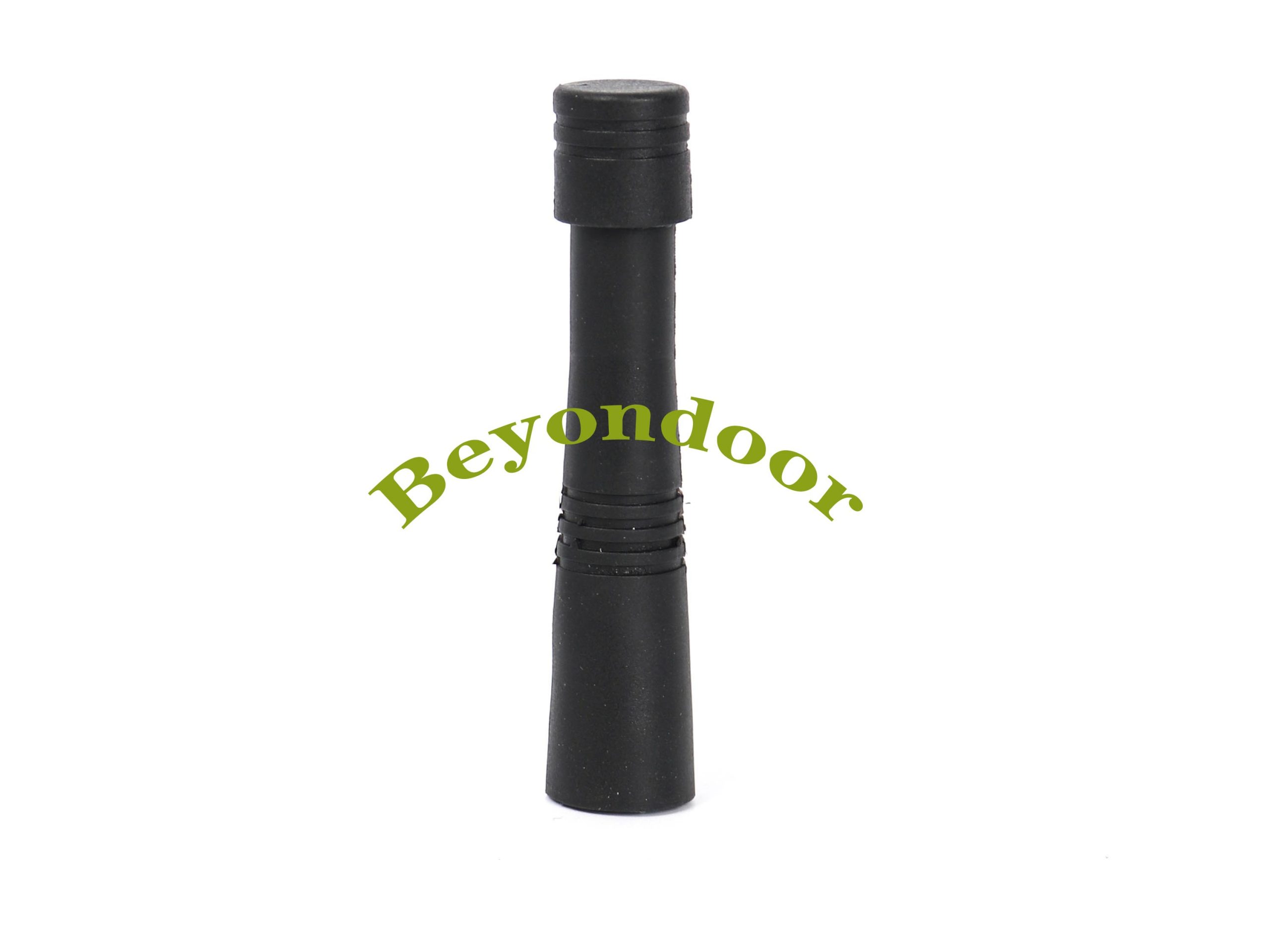

Aller au contenu- Modèle: FAGPSGLONASS.98
- Antenne
- Fréquence (MHz) : 1575/1602
- Fréquence centrale (MHz) : 1590
- VSWR: 1,5: 1
- Bande passante (MHz) : ± 5
- Impédance (Ω) : 50
- Polarisation: linéaire
- Motif: omnidirectionnel
- (ii)LNA / Filtre
- Gain LNA (sans câble): 28 dBi typique
- Figure de bruit (dB) : 1,5
- Atténuation de la bande de filtrage (f0 = 1575,42 MHz)
- 7 dB Min f0 +/- 20 MHz;
- 20 dB Min f0 +/- 50 MHz;
- 30 dB Min f0 +/- 100 MHz
- VSWR < 2.0
- Tension CC (V): 2,7 à 5,0
- Courant CC (mA) : 10 Max
- (iii)Mécanique
- Poids (gramme) < 30
- Longueur d'antenne (mm) : 63
- Diamètre max (mm) : 14
- Diamètre minimum (mm) : 10
- Connecteur: SMA mâle
- Logement: noir
- (iv)Environnement
- Temp de travail: -40 ℃ ~ + 85 ℃
- Température de stockage: -45 ℃ ~ + 100 ℃
- Vibration: balayage sinus 1g (0-p) 10 ~ 50 ~ 10Hz chaque axe
- Humidité: Humidité 95% ~ 100% HR
- Résistant aux intempéries: 100% étanche
